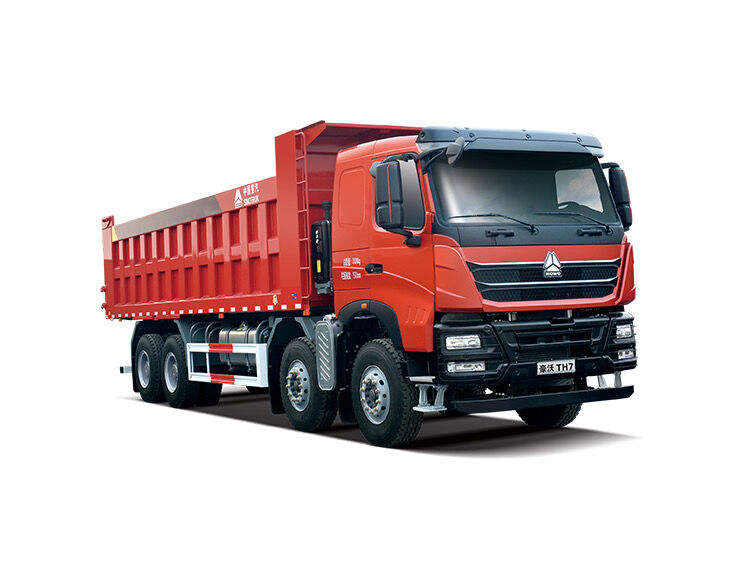

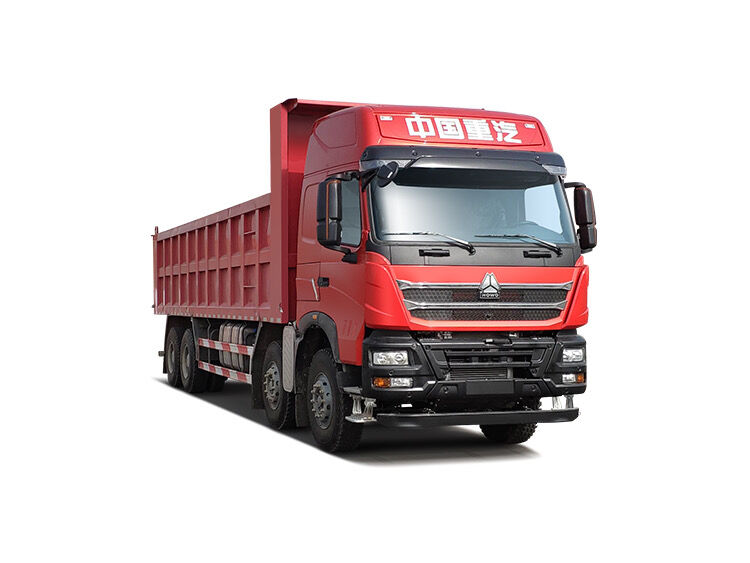

HOWO TH7 8×4 DUMP TRUCK
| 8x4 HOWO Dump Truck | ||
| Key Performance | 371 HP Engine, Cargo body 8.5Mx2.3Mx1.2M（1.4M）, 23.5m³(27m³ , | |
| bottom of body: 12mm, side of body: 10mm. for large stone, | ||
| bottom of body: 8mm, side of body: 6mm. for ordinary earth. | ||
| Thickness of bottom and side can be customized. | ||
| 12.00R20 radial ply tyre | ||
| Performance | Gross weight | 31000 Kg |
| Chassis dead weight | 15290 Kg | |
| Permissible loading capacity | 15580 Kg | |
| Wheel base | 1800+4800+1350mm | |
| Overall dimension | 11445+2496+3190mm | |
| Front overhang/Rear overhang | 1500/1995 | |
| Front wheel track | 2022 | |
| Rear wheel track | 1885 | |
| Approach/Departure angle | 18/25° | |
| Max. driving speed | 75Km | |
| Maximum grade ability (%) | 37° | |
| Fuel consumption(L/100km) | 35 | |
| Engine | Make: SINOTRUK | |
| Engine model: : WD615.47, Euro II emission standard | ||
| Maximum output: 371hp(273Kw) at 2200 rpm according to DIN | ||
| Maximum torque: 1500Nm at 1100~1600 rpm | ||
| 4 stroke direct injection diesel engine,6 cylinder in-line with water cooling, turbo-charging & inter cooling | ||
| Bore: 126mm; Stroke: 130mm; | ||
| Displacement: 9.726L; Compression ratio: 17:1 | ||
| Specific fuel consumption: 195g/kWh; Engine oil filling quantity: 23L | ||
| Cooling system filling quantity (long-term filling): 40L | ||
| Thermostat opening temperature: 80°C | ||
| Twin cylinder air compressor Rigid fan | ||
| Option: | ||
| Thermostat with 71 °C opening begin | ||
| Silicon oil fan | ||
| Transmission | 19710 | |
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance. | |
| Driving axle | AC16 drum brakes, Casted axle housing, central single reduction with planetary wheel reduction (hub reduction)and differential locks between wheels and axles. | |
| Load capacity: 16ton. Ratio: 4.77, Option: 5.45 | ||
| Front axle | HF9 drum brakes, load capacity: 9ton | |
| Steering box | ZF8118 hydraulic steering with power assistance | |

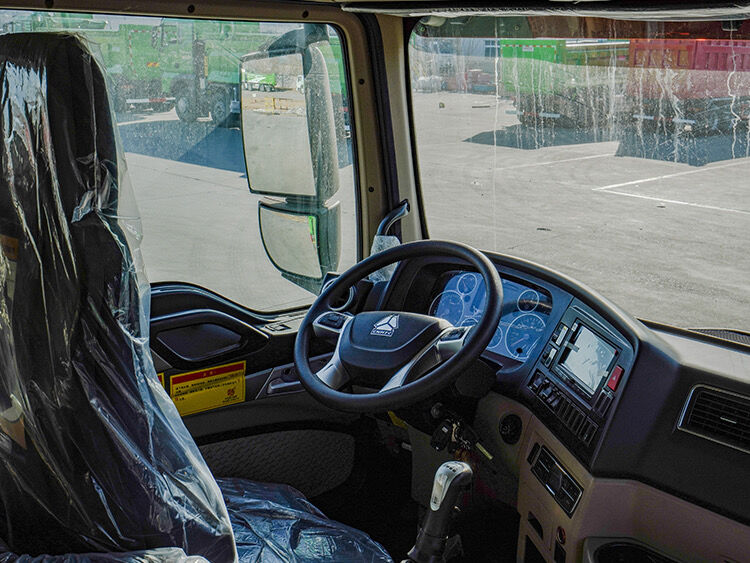

| Cab | HW76 with one berth, right hand drive and safety belt | |
| Air conditioner | Yes | |
| Tire | 12.00R20 Option: 315/80R22.5 | |

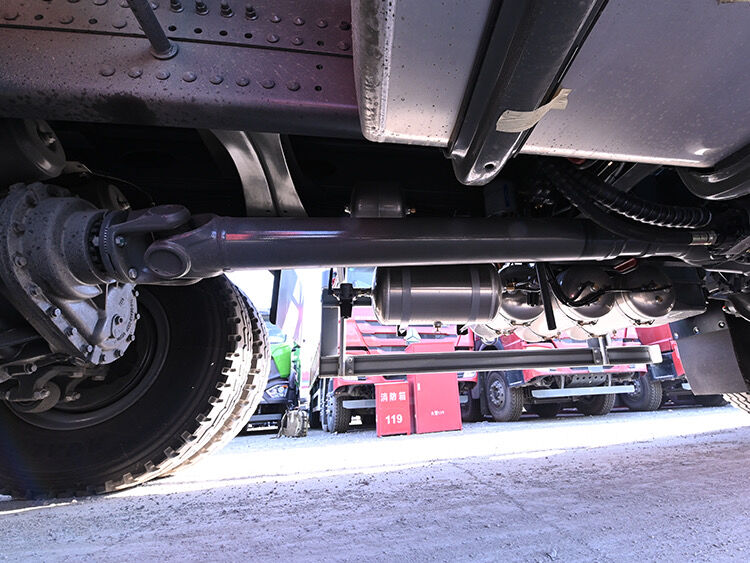

| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm and reinforced sub frame, all cold riveted cross members. | |
| Front suspension: 90mm*14mm*10pcs semi-elliptic leaf springs with hydraulic telescopic | ||
| double-action shock absorbers and stabilizer | ||
| Rear suspension: 25mm*12pcs semi-elliptic leaf springs with bogie spring and stabilizer | ||
| Fuel tank: with 300 L fuel tank with locking fuel cap | ||
| With one spare wheel | ||
| Cargo Body | Dimension of container | 8500*2300*1200mm(1400mm) |
| Thickness of container | Bottom: 12mm, Side: 10mm | |
| Bottom: 8mm, Side: 6mm(optional) | ||
| Remarks | Exhaust pipe up | Yes |
| Alert sound when back up | Yes | |
| Enhanced backboard beam | Yes | |
| Alert light | Yes | |
