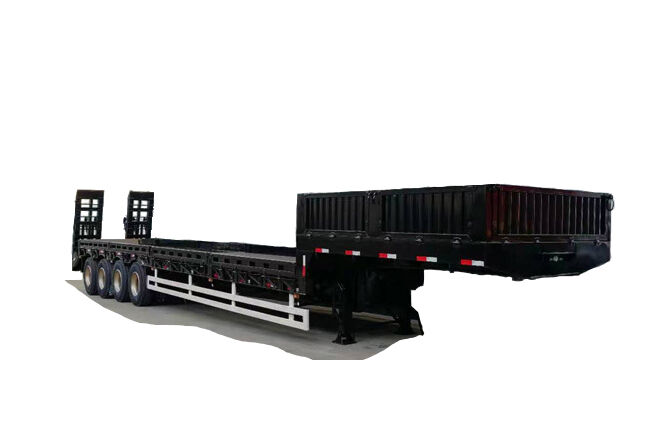

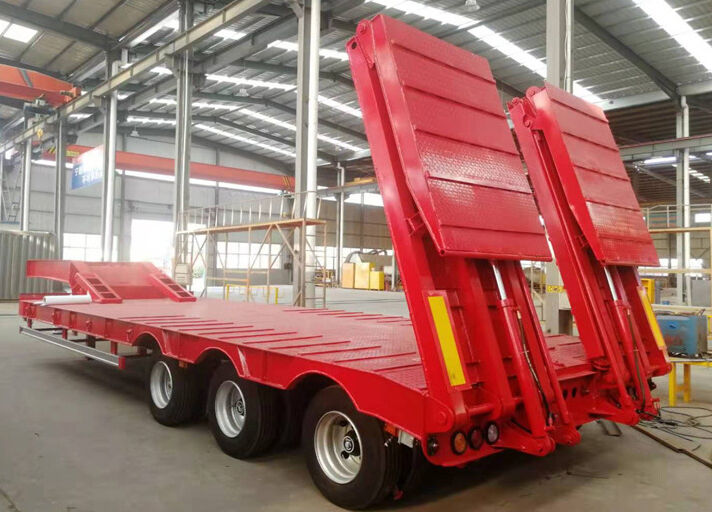

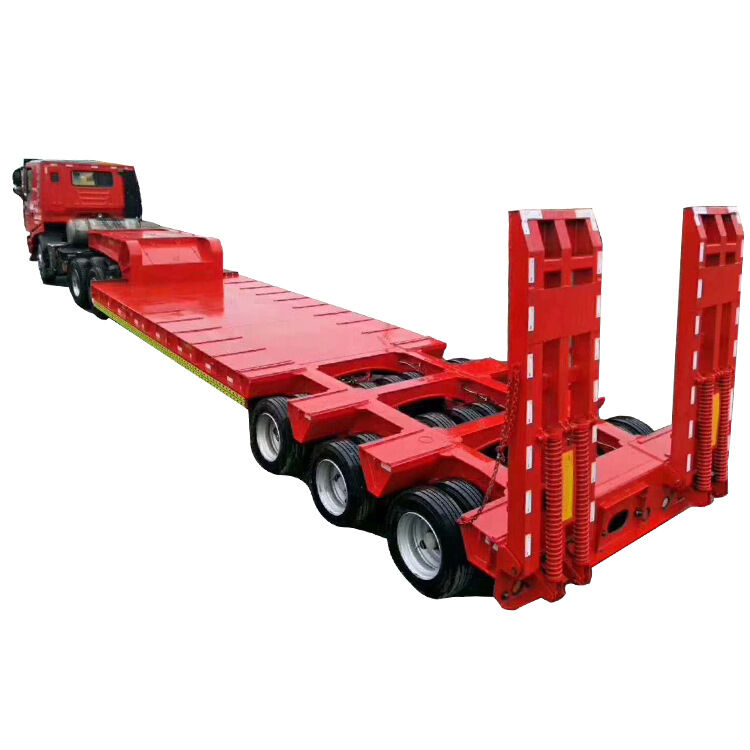

| 60 Ton Low-Bed Trailer(17m) |
| Standard specification |
| Gross Weight | About 12 tons |
| Outer side dimension(mm) | 16750mm*2700mm*1250mm |
| Loading Capacity (Ton) | 60 ton |
| AXLES | FUWA 13 T /PER , 3 AXLES |
| Tire | 10.00R20/ 11.00R20 12pieces |
| Rim | 7.5 12pieces |
| Suspension | mechanical suspension |
| Spring leaf | 10 pieces or intensify |
| King pin | 3.5" |
| Support leg | Manual,two |
| Ladder | A pair of ladder (Manhand control ) |
| Main beam | Height: 520mm, upper plate is 20mm, middle plate is 10mm, down plate is 20mm side beam is 25# |
| Platform | 5mm diamond platform |
| Brake chamber | 4 double and 2 single chambers |
| Valve | Standard |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m*0.5m*0.5m |
